Product Family  Sign Bracketing

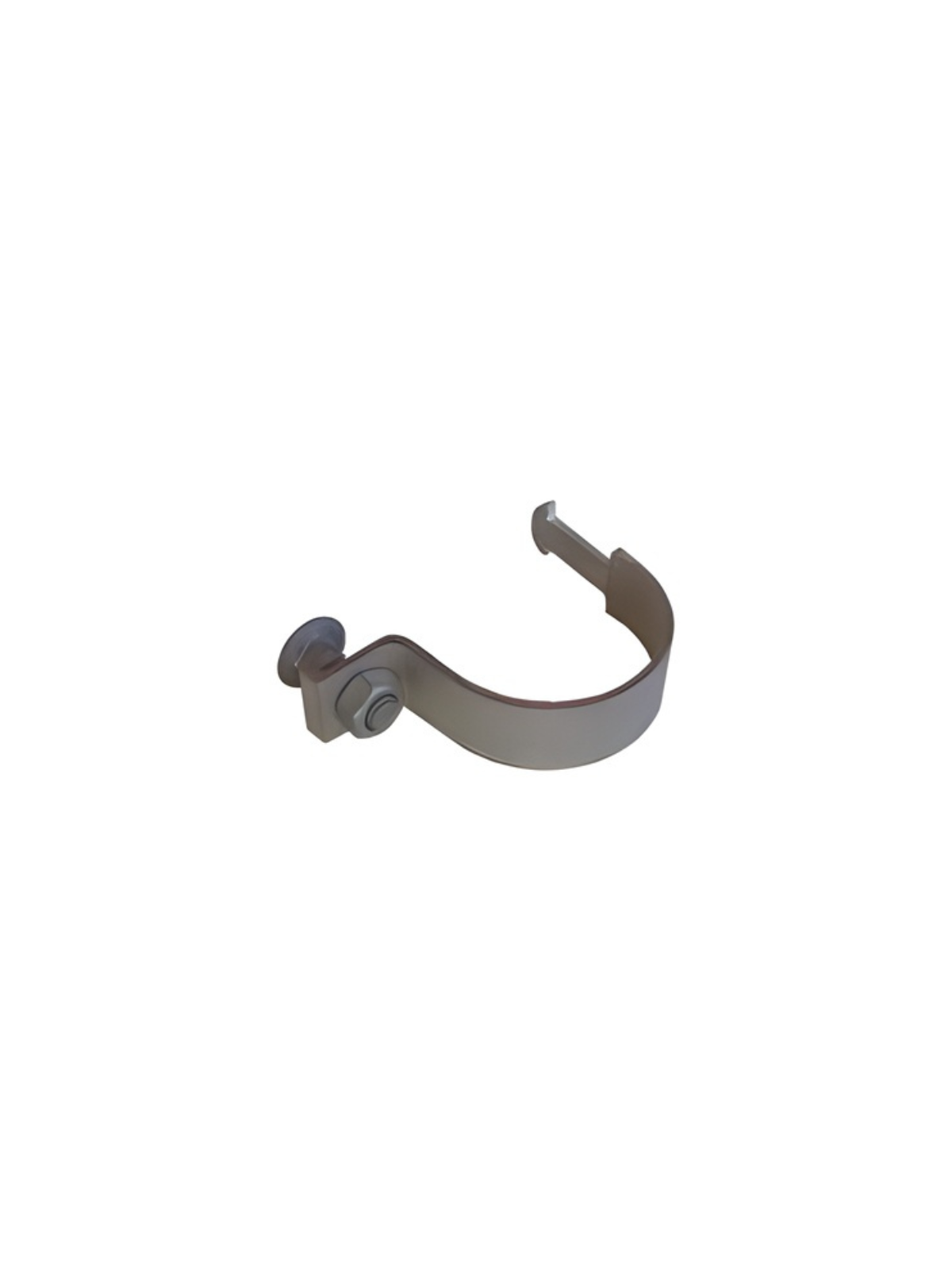

Product Name  ARC060 Bracket  | Material  Galvanised | Includes Bracket , M10 Cuphead bolt and nut.

The ARC060 bracket is for use when signage is installed on  50NB Sign Posts.  To be used the sign must have the supporting rails behind it and not the holes in the sign panel.

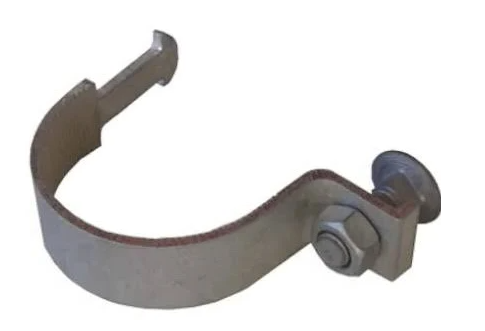

Supplied with a M10 x 30mm Galvanised Cuphead Bolt and Nut, both the clip end of the bracket and the Cup Head slide into the Sign extrusion channel at the back of the sign.

Total Bracket quantity can be worked out by multiplying the amount of sign posts versus the amount of rails or ribbing on the rear of the sign. At each junction of ribbing rail and sign post you must allow 1 bracket.
